Project Description

MRO – Bearing Support

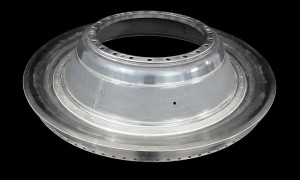

Bearing Support

Project Description

Reference Part #1085607-01

Flange Replacement to remove fatigued material and restore part to “as new” conditions

Repair Scope

  • Machine to remove existing plasma and fatigued material
  • Weld repair cracks
  • FPI inspection

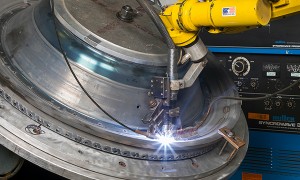

  • Plasma Arc weld new flange
  • X-ray weld joints
  • Plasma spray to restore dimensional characteristics
  • CNC Machine to finished dimensions

Project Details

Industry/Engine:

GG8/FT8 Industrial
Power Generation

Materials:

AMS5596 Inconel

Part Dimensions:

Height: 20.00″
Diameter: Ø45.00″

Tolerances:

±.002”
