Project Description

OEM – Circumferential Seal

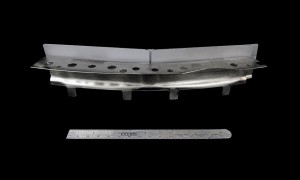

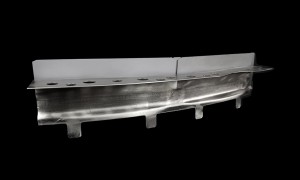

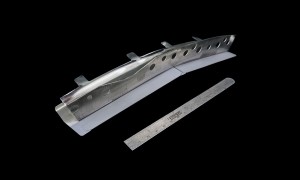

Circumferential Seal

Project Description

Resistance Welded Sheet Metal Assembly

  • Sheetmetal Forming
  • Resistance Welding
  • Heat Treatment
  • FPI Inspection
  • CNC Milling
  • Assembly/Riveting
  • Dry Film Coating

Project Details

Industry/Engine:

Military Aircraft Engine

Materials:

B50TF14 Inconel

Part Dimensions:

Height: 2.00”
Width: 8.00”
Thickness: .030”

Tolerances:

±.002”
