Project Description

OEM – Inlet Assembly

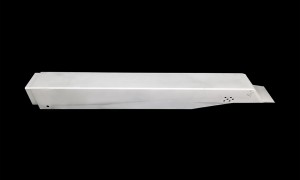

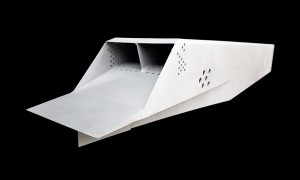

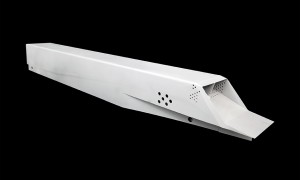

Inlet Assembly

Project Description

Welded Sheet Metal Fabrication

  • Sheet Metal Forming
  • TIG Welding
  • Heat Treatment
  • FPI Inspection
  • 5-Axis CNC Milling
  • Assembly/Riveting
  • Passivation

Project Details

Industry/Engine:

Military Weapon Systems

Materials:

AMS 5604 Stainless Steel

Part Dimensions:

Height: 8.00”
Width: 8.00”
Length: 36.00”

Tolerances:

±.0005”
