Project Description

OEM – Combustion Liner

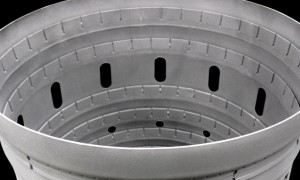

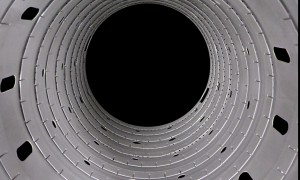

Combustion Liner

Project Description

Welded Sheet Metal Fabrication

  • Sheet Metal Forming
  • TIG Welding
  • Resistance Welding
  • Heat Treatment
  • FPI Inspection
  • Plasma Coating
  • CNC Turning & Milling
  • Assembly

Project Details

Industry/Engine:

Military Aircraft Engine

Materials:

AMS5536 Hastelloy X

Part Dimensions:

Height: 16.00”
Diameter: 10.00”
Thickness: .030”

Tolerances:

±.002”
